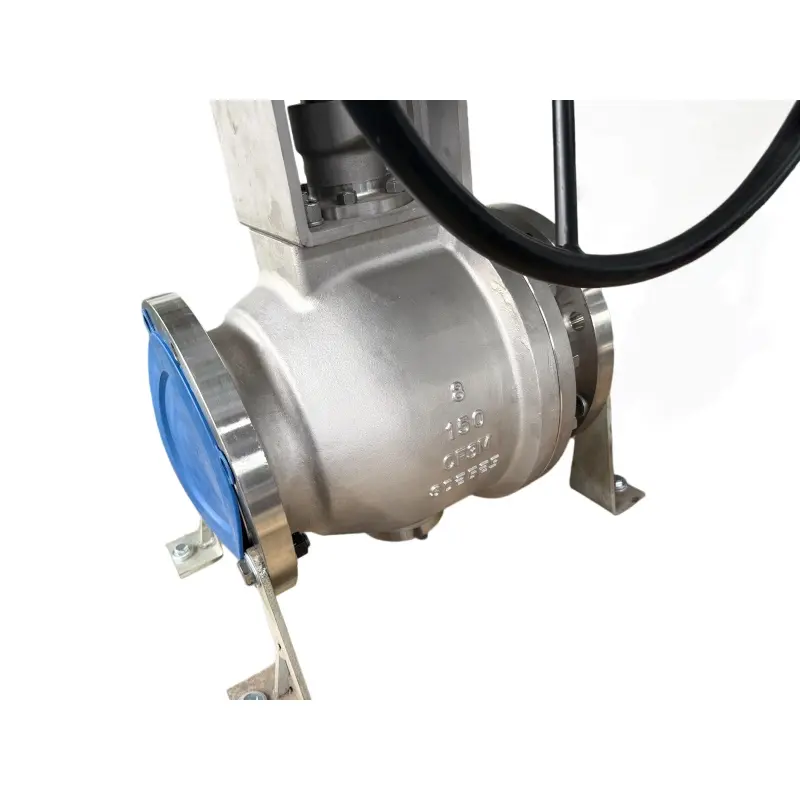

CF3M 8 Inch Manual Ball Valve

The body is cast first and then machined. Sealing areas are controlled during machining to make sure the ball and seat match properly. As long as this part is done right, sealing performance is generally stable over time.

It’s a full bore design, so the inside diameter is close to the pipe size. For an 8 inch manual ball valve, this helps keep the flow smooth and avoids extra pressure loss.

Operation is manual with a lever. For DN200, a lot of users prefer adding a gearbox, since the torque can be a bit high depending on pressure. With a gearbox, it’s easier to handle on site.

•Size: 8 inch (DN200)
•Material: CF3M
•Pressure rating: Class 150
•Connection: Flanged
•Type: Full port 8 inch manual ball valve
•Seat: PTFE (can be changed if needed)

Compared with CF8, CF3M has better corrosion resistance, especially in wet or slightly aggressive conditions. That’s why it’s often used instead of standard stainless in these cases.
This 8 inch manual ball valve is commonly seen in water systems, chemical pipelines, and general industrial service. The structure is simple, and there’s not much maintenance required in normal use.
