Valve Drive Parts

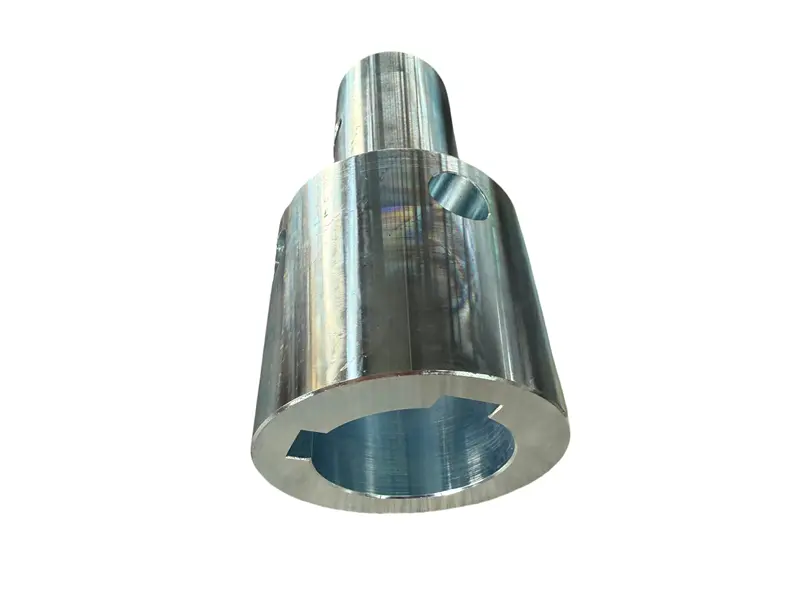

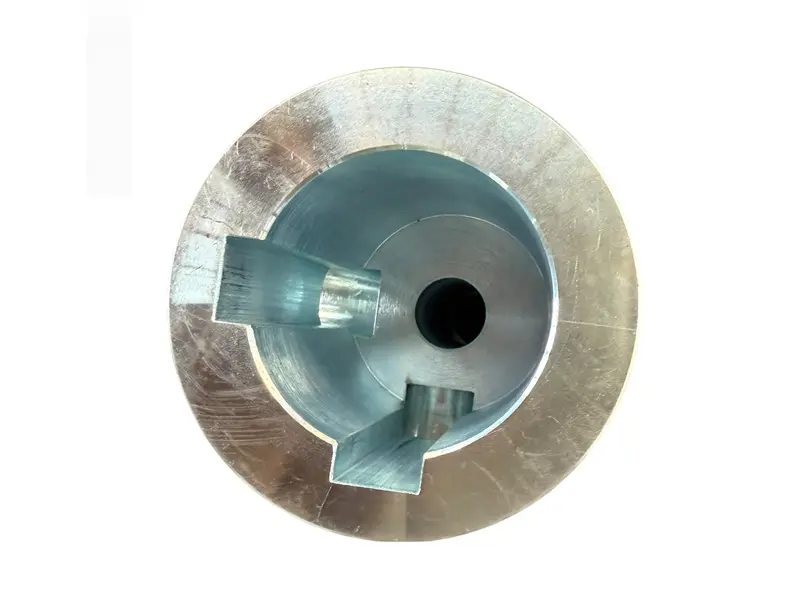

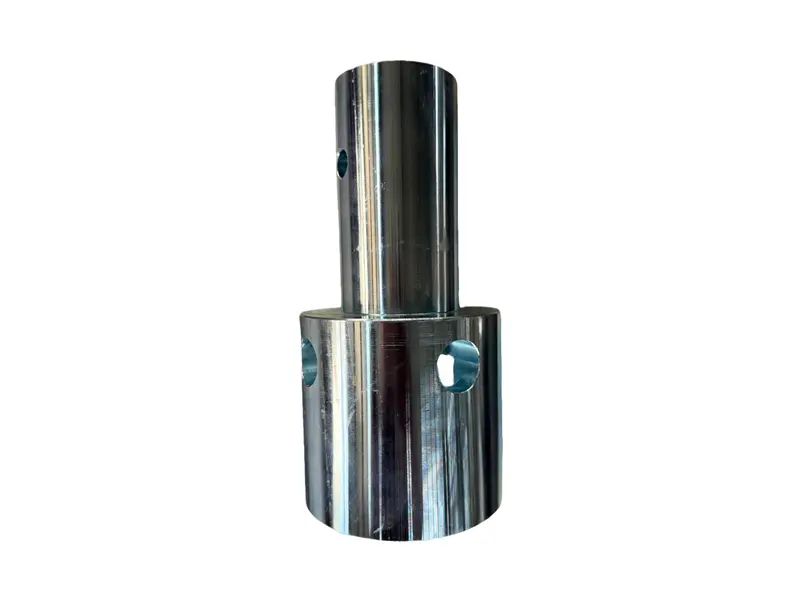

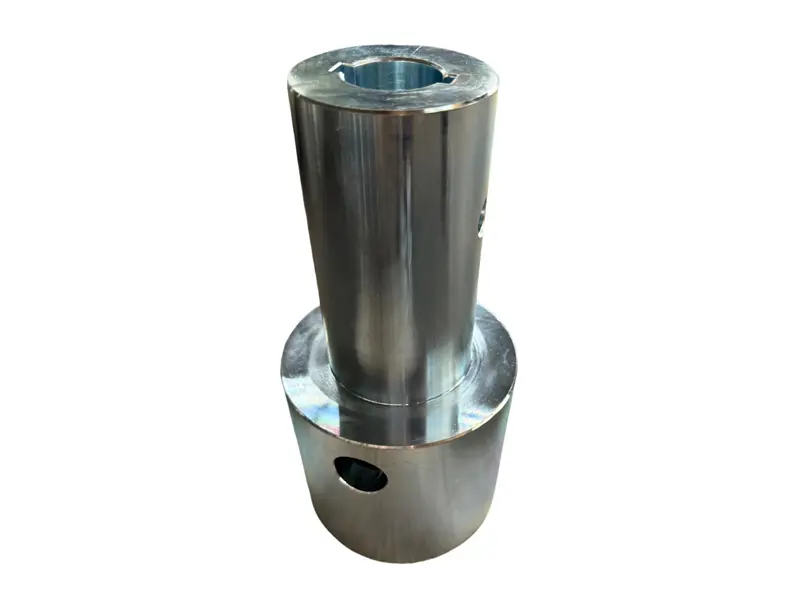

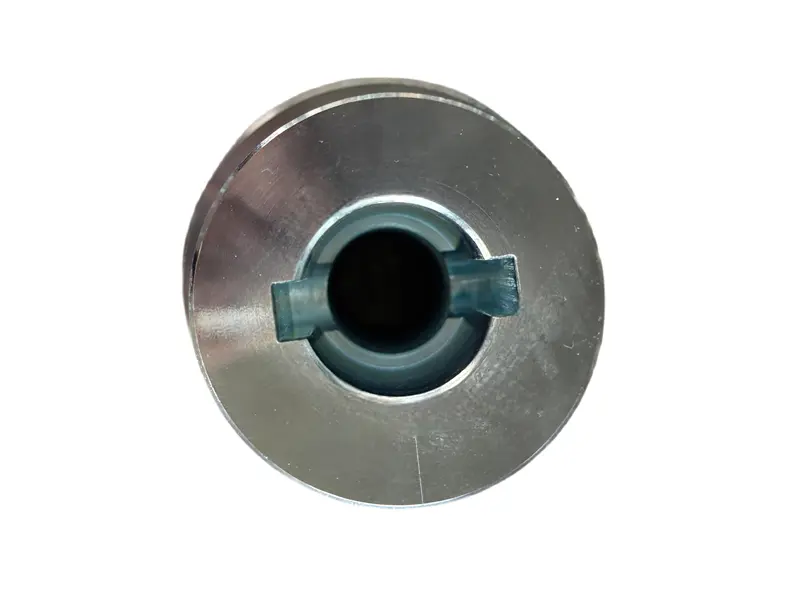

Valve Couplings (AISI 1045 Steel)

This coupling is used to connect the actuator to the valve stem and is typically used in the drive section of ball and butterfly valves. The parts are solid machined, made of AISI 1045 steel with galvanized surface, suitable for regular industrial field use. The machining method is CNC turning and milling, the structure is cylindrical, both ends can be machined into square holes, keyways or taper holes, customized according to the size or interface standard provided by the customer.

Usually positioned by screws or pins to ensure no loosening or slipping during the working process. Suitable for applications with high and medium frequency opening and closing and high torque requirements.

Basic parameters

- Material: AISI 1045 steel with zinc-plated surface

- Optional: 304/316 stainless steel or duplex steel.

- Surface treatment: zinc-plated by default, optional blackening, spraying, etc.

- Bore structure: square holes, multiple keyways or tapered holes are available.

- Shape: Cylinder with locating holes, overall solid parts.

Processing instructions

- CNC machining, accurate size, stable batch.

- Support customized drawing and sample

- Regular delivery time 7-15 days, special circumstances can be expedited.

Frequently Asked Questions (FAQ)

Q: In addition to AISI 1045 steel, what other materials can I choose?

In addition to the standard AISI 1045, we can also provide 304, 316 stainless steel or duplex steel materials, according to the specific use environment.

Q: What is the difference between blackened and galvanized surfaces?

Blackening is a basic anti-rust treatment, suitable for indoor use, while galvanizing has strong anti-corrosion ability and is suitable for outdoor or humid environment.

Q: Can we do non-standard processing according to drawings?

Yes, we can process according to customer's drawing, and we can customize the inner hole, outer diameter, hole position and so on.

Q: Is there any MOQ?

There is no mandatory MOQ, but we have stock for conventional structure, and we can also do small quantity for non-standard products.

Q: How do I fix it on the actuator or valve stem?

Commonly, the actuator or stem is keyed, pinned or set screwed. Countersunk holes on the side can be machined if needed.
