Forged Steel Valve Bracket

Forged Steel Actuator Mounting Bracket (ISO 5211 Compatible)
Also available in stainless steel and duplex steel

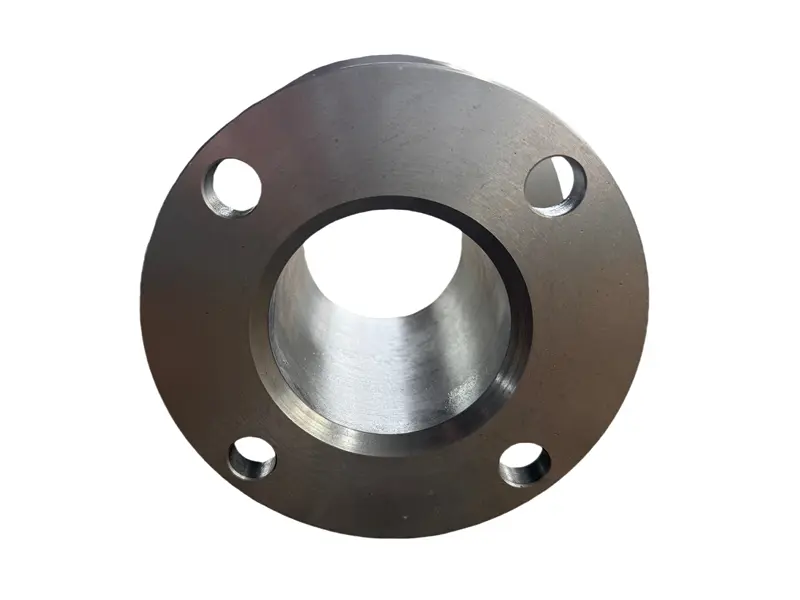

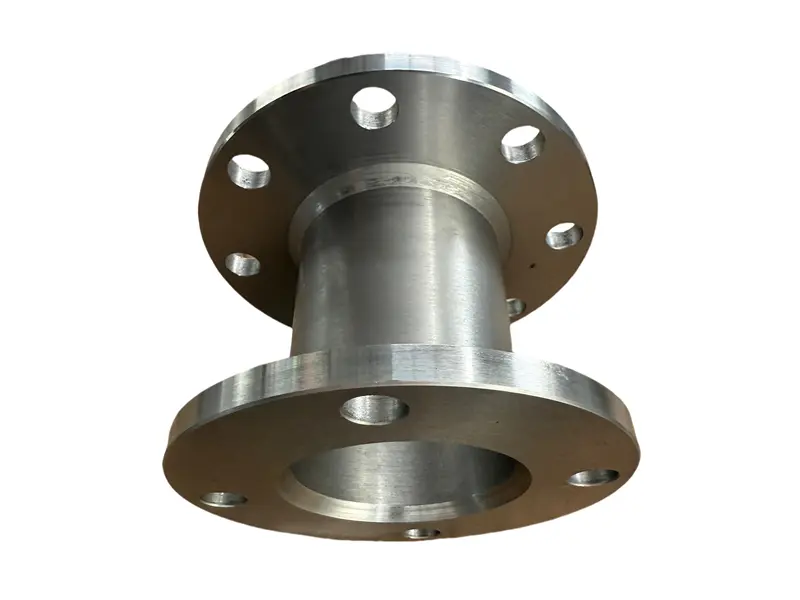

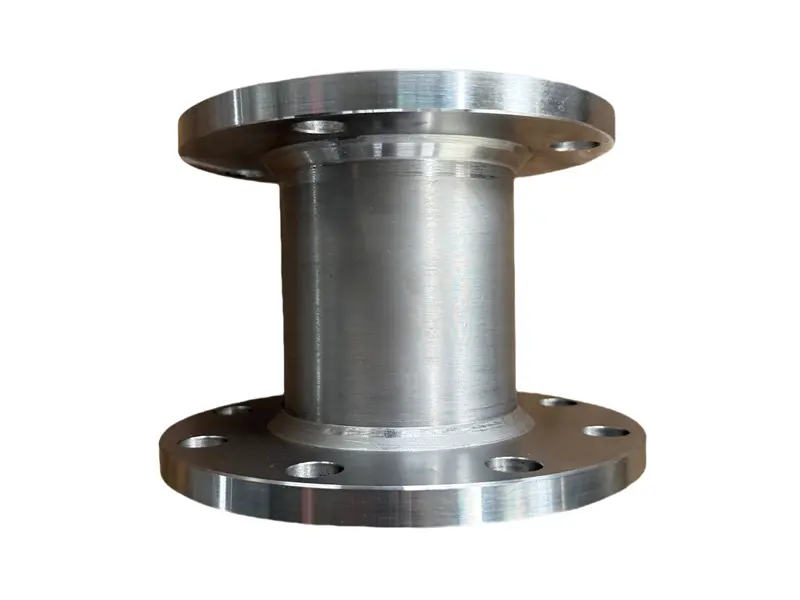

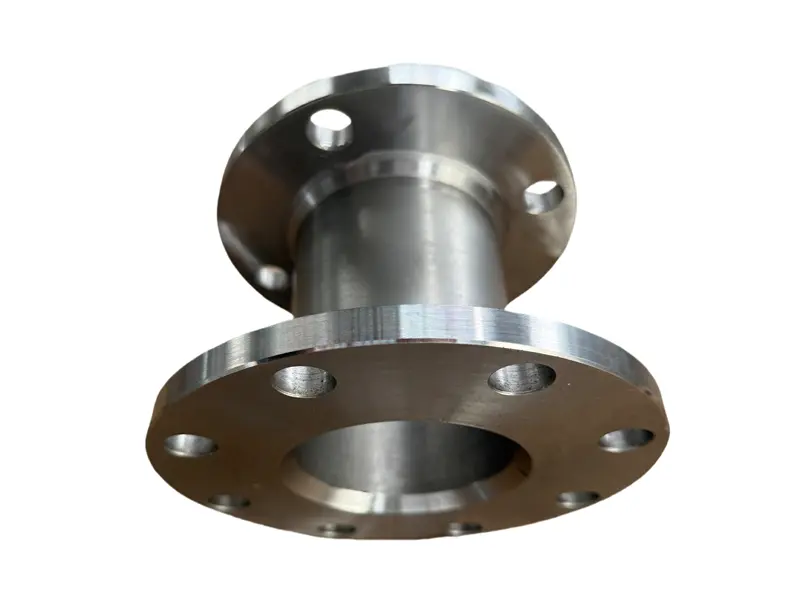

This forged steel bracket is designed to serve as a structural interface between a valve and its actuator. The component features two CNC machined flanges with bolt patterns that can conform to ISO 5211 or customer-specified layouts. The body section is precision bored to support direct mounting over valve stems or drive shafts.

It is typically used in automated valve systems, including ball valves and butterfly valves, where stable alignment and mechanical strength are essential. This is a commonly used valve bracket in water treatment, process industries, and OEM actuator mounting setups.

Main Features

- Material: Forged carbon steel (standard). Optional stainless steel (304, 316) or duplex stainless steel (2205) available for corrosion-critical environments.

- Structure: Integral forged body with two mounting flanges. Drilled holes for bolted connection.

- Hole Layout: Compatible with ISO 5211 bracket interfaces or custom bolt hole layouts.

- Processing: Fully CNC machined, smooth bore finish, deburred edges.

- Surface Finish: Anti-rust oil by default. Zinc plating or coating available upon request.

Applications & Advantages

Applications:

- Actuator mounting bracket for ball or butterfly valves

- Valve mounting support flange for industrial automation

- Pipe system brackets requiring rigid valve-to-actuator coupling

- Custom engineered valve bracket solutions

Advantages:

- Forged structure offers high load-bearing capacity

- One-piece CNC-machined for tight tolerance and durability

- Suitable for both pneumatic and electric actuators

- Stainless steel bracket or duplex steel bracket options for harsh environments

Technical Details

- Mounting standard: ISO 5211 / customized

- Pressure Class: Class 150 – Class 600

- Operating temperature: -29°C to 400°C (based on material)

- Bore: Precision-turned, suitable for keyway or round shaft

Frequently Asked Questions (FAQ)

Q: Can I customize hole size or flange thickness?

A: Yes. Please send your drawing or actuator specs for confirmation.

Q: Is this bracket available in stainless or duplex steel?

A: Yes, 304, 316 and 2205 duplex steel brackets are available on request.

Q: Does it fit ISO 5211 actuators?

A: Yes, our default design conforms to ISO 5211. Customization is available.
