Forged Steel Valve Body with Flanged Bonnet (Matching Parts 8 inch ball valve)

This structure is used for ball valve, playing the role of pressure and connection. The two pieces are matched for use, through-hole, flange surface, bolt hole alignment is accurate. Suitable for medium and high pressure pipelines. Commonly used in petrochemical, steam, thermal energy and water systems.

Material and treatment

- Material: A105 carbon steel forgings, Special austenitic stainless steels such as 316 304 stainless steel, 304L / 316Ti and 2205 duplex can be used, or customized according to customer requirements.

- Condition: hot forging + finishing

- Heat treatment: normalized or tempered as required

- Surface: anti-rust oil coating, optional phosphating or spraying.

Valve Body & Bonnet

Valve Body

- Overall forging, compact structure

- Center aperture, stop positioning according to the drawing.

- Flange end RF structure, roughness Ra 3.2~6.3 µm.

- The distribution of threaded holes (M or UNC) is according to the standard layout.

Bonnet

- The flange structure is the same as the valve body.

- The concentricity of the mounting surface and the matching holes are well matched.

- The upper end can be processed according to the drawings, such as guide groove and limit hole.

Matching precision & Common specification range

Matching precision

- Bore and stop: generally controlled in H7/h7

- Flange face runout: ≤0.05 mm

- Flange surface flatness: ≤ 0.1 mm (150 pressure)

Common specification range

- Through-hole diameter: DN20 ~ DN100

- Outside diameter range: Ø90 ~ Ø300 mm

- Number of holes: 4 holes / 8 holes / 12 holes

- Pressure class: Class 150 / 300 / 600 / 900 / 1500 / 2500

Installation instructions & Notes

Installation instructions

- Recommended to use metal-wound gasket or graphite gasket.

- Tighten the bolts by applying force in diagonal sections.

- Check the mating holes for burrs or foreign objects before assembly.

- If welding is involved, stress relief should be done after welding.

Notes

- Can be processed according to customer's drawing.

- Provide material certificate (EN10204 3.1).

- We can provide the whole set of valve body, valve cover, valve stem, valve seat and other structural parts.

DETAIL PICTURE

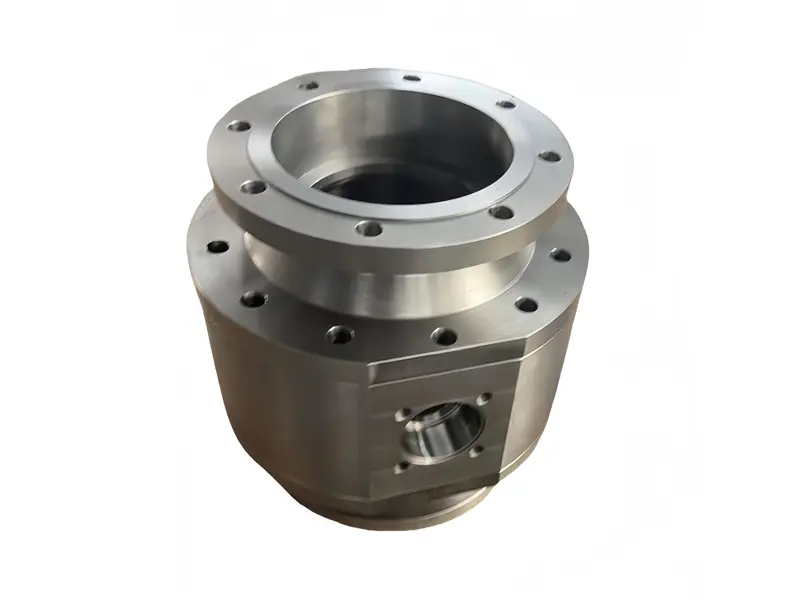

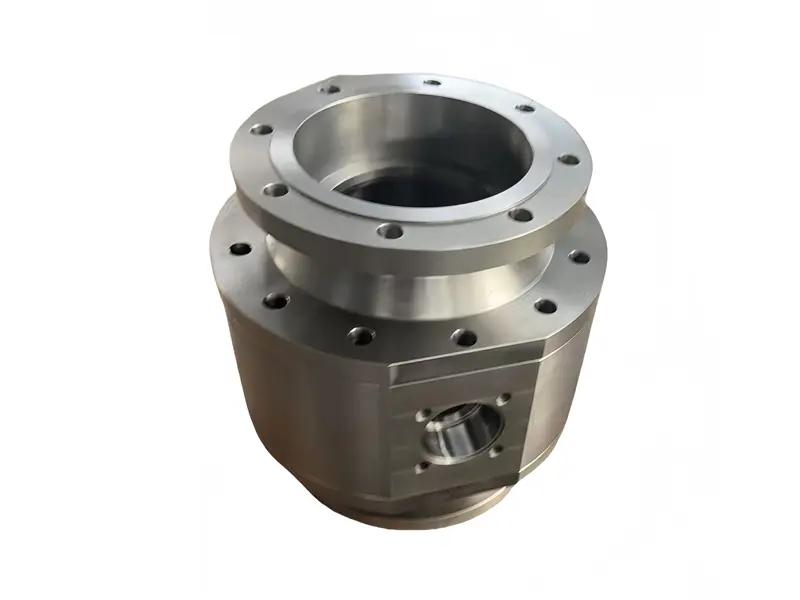

A105 Forged Steel Valve Body with Flanged Bonnet (Matching Parts) (1)

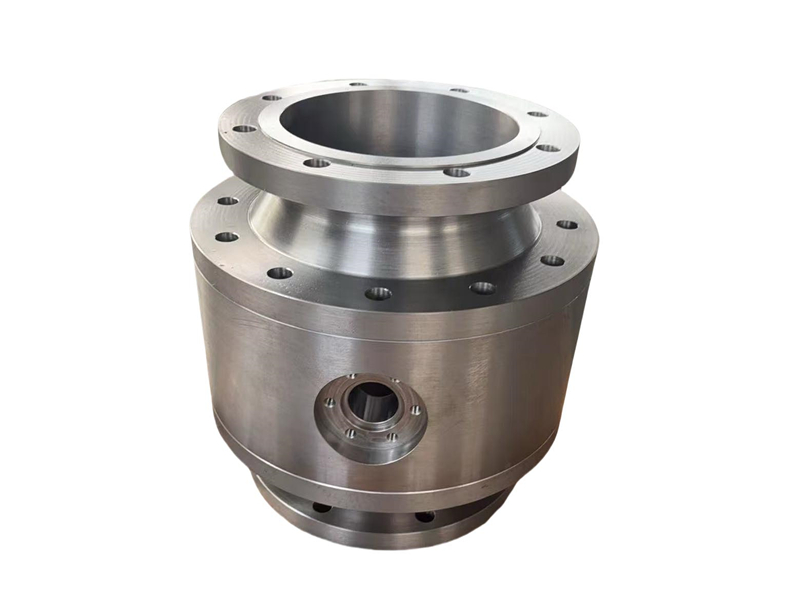

A105 Forged Steel Valve Body with Flanged Bonnet (Matching Parts) (2)
