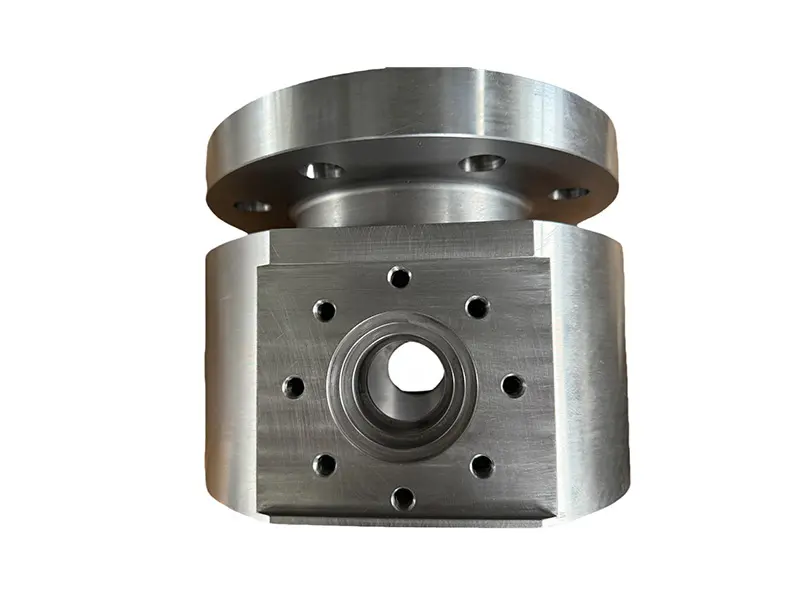

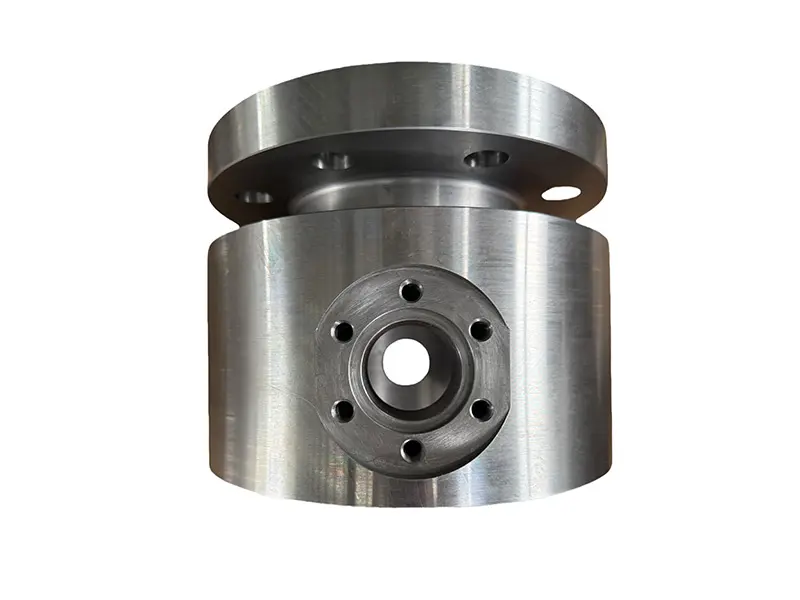

Forged Steel Valve Body for Ball Valves

This valve body is manufactured from forged carbon steel and serves as a key component in industrial ball valve assemblies. It’s designed to withstand demanding operating conditions such as high pressure, frequent cycling, and fluctuating temperatures. The part is fully machined to tight tolerances, ensuring reliable sealing surfaces, correct bore alignment, and consistent flange geometry. If required, the body can also be made from stainless steel (304, 316, or 316L) for use in corrosive or clean-service environments.

Design and Machining

The body features flanged ends with regularly spaced threaded bolt holes. Internal surfaces are precision-turned to ensure proper fit with the ball and seat. A groove or shoulder can be added at the flange face if needed, depending on the type of gasket or sealing method used. Drainage or auxiliary ports may also be machined as required. Every unit is processed using CNC equipment to guarantee repeatability and dimensional accuracy.

Material Options

- Standard: Forged carbon steel

- Optional: 304, 316, or 316L stainless steel

- Heat treatment and surface passivation can be applied depending on application needs.

Applications

This valve body is suitable for use in:

- General pipeline systems (water, air, oil)

- Chemical and petrochemical plants

- Power generation systems

- Natural gas transmission

- Storage tanks and process skids

When stainless steel is selected, it can also be used in food-grade or pharmaceutical systems.

Technical Summary

- Mounting: Flange-to-flange

- Bore: Machined to accept standard or modified ball and seat sets

- Pressure classes: Typically 150LB, 300LB, or 600LB (custom on request)

- Available in floating or trunnion-type valve body configurations

- Compatible with manual or automated actuation setups (ISO 5211 interface machining available)

Frequently Asked Questions

Q: Can this be made to drawing?

A: Yes. We regularly produce valve bodies based on customer drawings or specifications.

Q: What kind of sealing surface is used?

A: We can machine smooth faces, ring grooves, or raised face surfaces based on project requirements.

Q: Are small batch orders acceptable?

A: Yes. We accept both low-volume and high-volume production runs.

Q: Do you offer stainless steel versions?

A: Yes. Many customers in the chemical and food sectors use our stainless steel valve bodies.

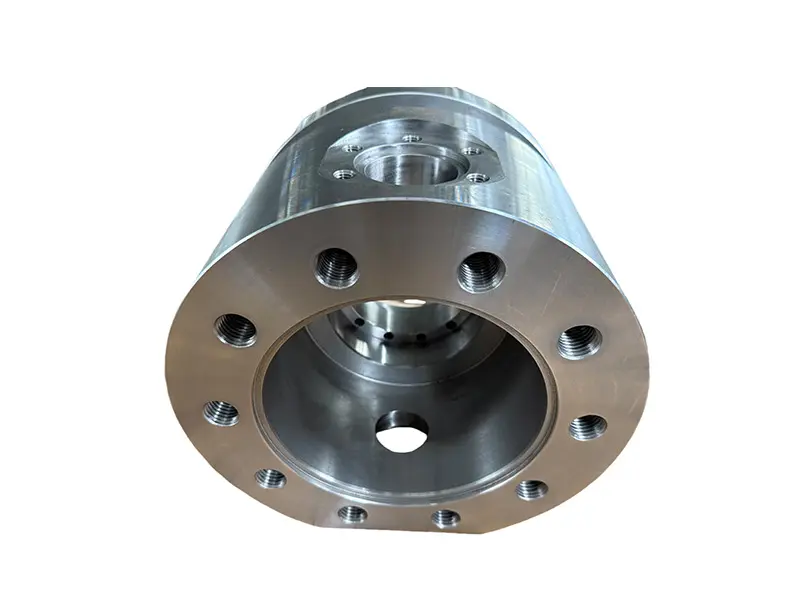

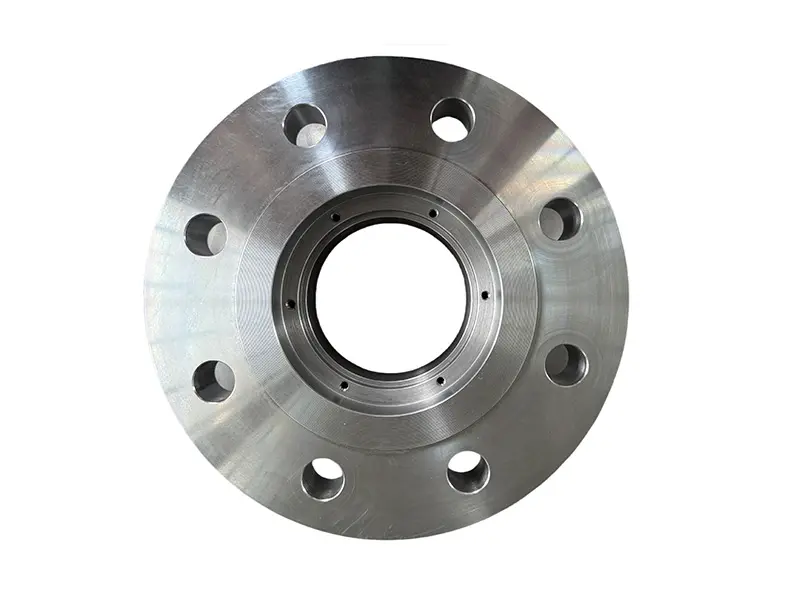

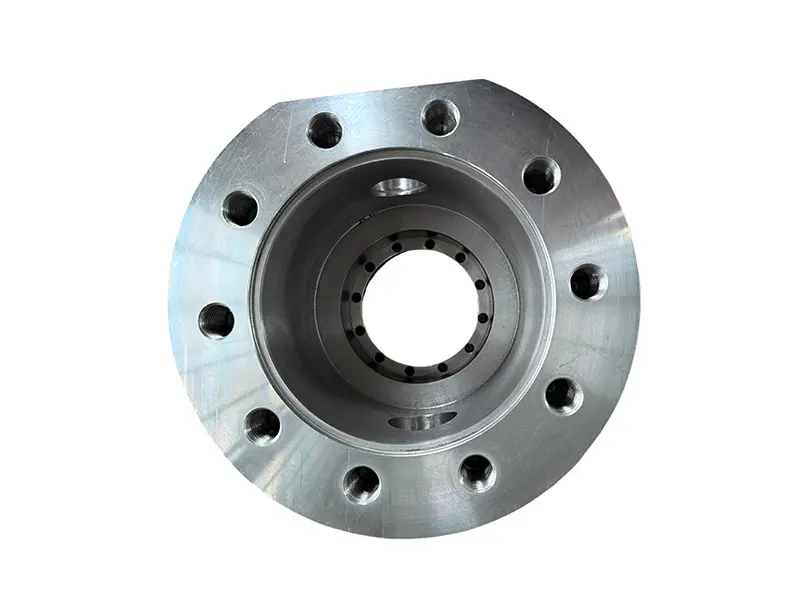

DETAIL PICTURE
