Valve Drive Parts

Forged Carbon Steel Valve Mounting Bracket-High quality forged steel

This product is a valve mounting bracket, One-piece machined from high-quality forged steel. Featuring standard flange structures at both ends with evenly distributed bolt holes, it connects the valve body to the actuator, ensuring coaxial alignment. It is suitable for electric or pneumatic control systems. With a robust structure, it is designed for stable operation under high-pressure conditions.

Material & Manufacturing

- Material: ASTM A105 (Forged Carbon Steel), Stainless steel and other materials can be processed according to customer needs.

- Manufacturing: Integrally forged, then precision CNC machined.

- Surface Treatment: Machined finish; optional rust-preventive oil, painting, or zinc plating.

- Heat Treatment: Normalizing or quenching & tempering treatment available upon request to enhance mechanical properties.

Structure & Dimensions

- Type: Double-flanged bracket with a central through-hole design.

- Flange Hole Pattern: Standard bolt hole arrangement (customizable based on requirements).

- Inner Bore: Precision machined to ensure axial fitting accuracy.

- Outer Diameter (OD), Inner Diameter (ID), Wall Thickness, Flange Dimensions: Can be machined according to customer drawings.

Application Scenarios

Used as a connecting support between electric/pneumatic actuators and valve bodies.

Commonly found in industrial piping systems for oil & gas, chemical processing, power generation, and water treatment.

Suitable for horizontal or vertical installation, ensuring axial stability during long-term operation.

Product Advantages

- High material strength and stable structure with minimal deformation

- Forged billet ensures good weldability and machinability.

- Symmetrical double-end flange design for easy installation and precise positioning

- High fatigue resistance, suitable for frequent opening/closing duty cycles.

Customization Options

- Center hole size adjustable to accommodate different valve stem connection structures

- Surface treatment options available for corrosion resistance, high-temperature tolerance, or other special environments.

- Flange faces can be customized to standard forms like Raised Face (RF) or Ring Type Joint (RTJ), compliant with ASME B16.5 or DIN standards.

Frequently Asked Questions (FAQ)

Q: Can the flange hole pattern be customized?

A: Yes, we support ISO, ANSI standards or custom machining according to customer drawings.

Q: Is it compatible with both electric and pneumatic actuators?

A: Yes, this bracket is suitable for the mounting structure of most electric or pneumatic valve actuators.

Q: What is the typical delivery time?

A: Standard products have a delivery time of 25-30 days, depending on quantity and any surface treatment requirements.

DETAIL PICTURE

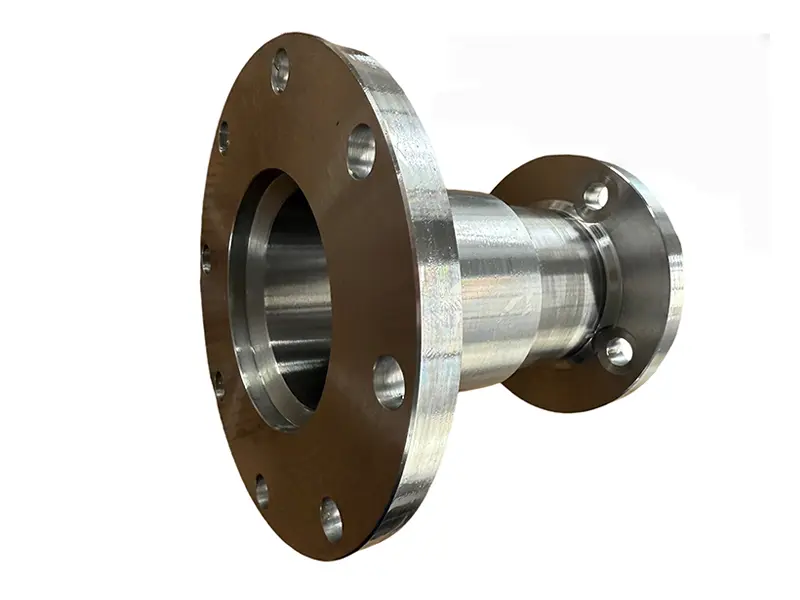

Forged-Carbon-Steel-Valve-Mounting-Bracket1

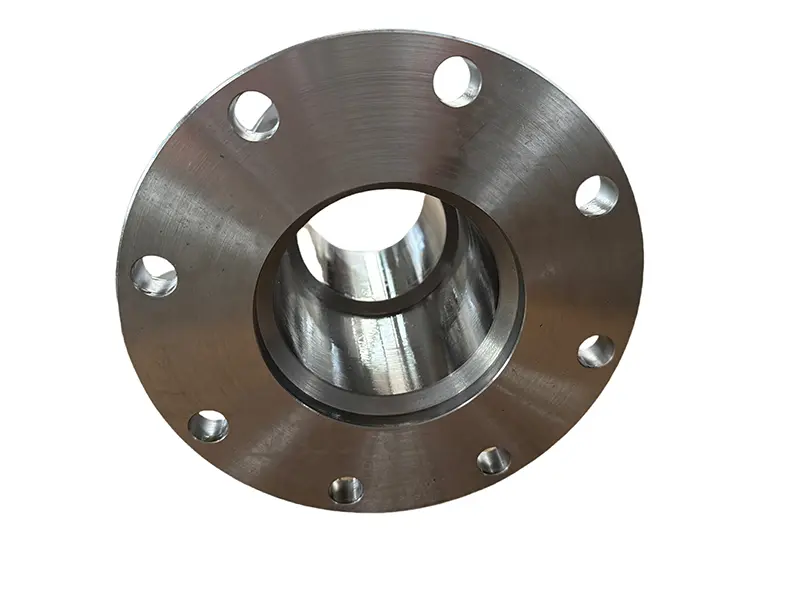

Forged-Carbon-Steel-Valve-Mounting-Bracket3
