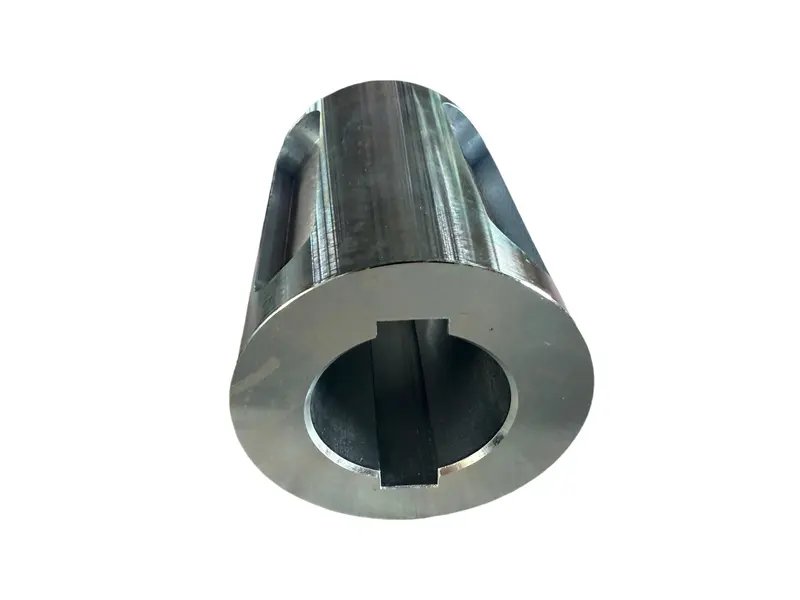

Coupling with Keyway (Galvanized) (1).jpg
Coupling with Keyway (Galvanized) (2).jpg

Coupling with Keyway (Galvanized)

This coupling is used to connect the valve actuator to the valve stem and is a solid structural component. The material is medium carbon steel (AISI 1045) with zinc plating. Both ends are machined with flat keyways for torque transmission, often used with standard keyed shafts.

The two sides of the outer circle are equipped with machining grooves for easy clamping and fixing. Size and structure can be customized according to drawing requirements, processing is completed by CNC equipment, good dimensional consistency. Suitable for frequent opening and closing or positioning requirements.

    Contact us

    • Technical Parameters

      - Material: AISI 1045 steel (optional 304/316 stainless steel)
      - Surface treatment: electro-galvanized, zinc layer thickness of about 8~12μm.
      - Structure: solid cylinder, flat keyway at both ends
      - Mating method: key connection, can be tightened with set screws or pin holes
      - Machining accuracy: controlled according to drawings, conventional fit for H7/h6

    • Scope of application

    • Frequently Asked Questions (FAQ)

    DETAIL PICTURE

    Contact us
    Coupling with Keyway (Galvanized) (2)

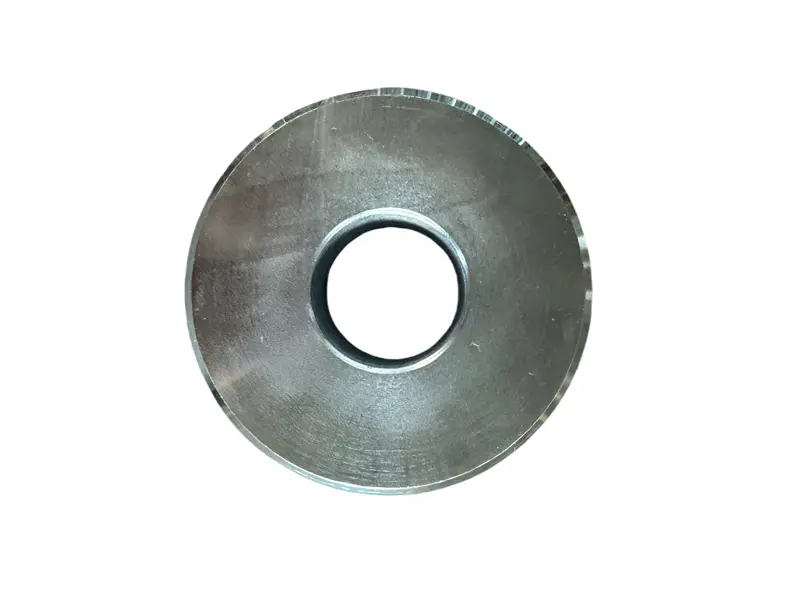

    Coupling with Keyway (Galvanized) (3)

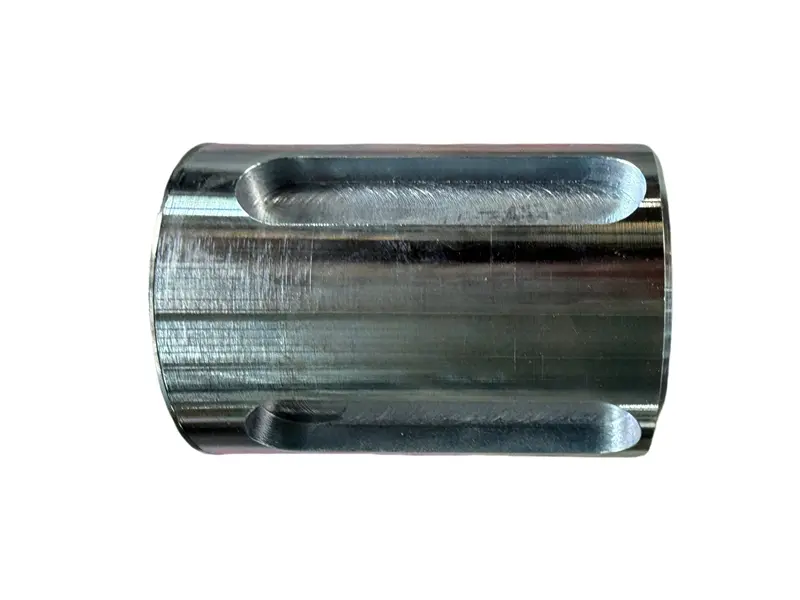

    Coupling with Keyway (Galvanized) (4)
