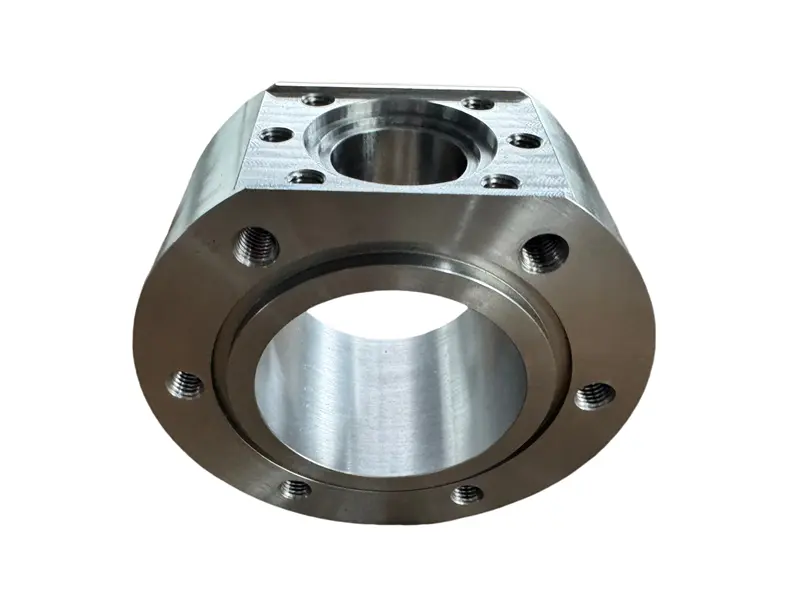

CNC Machined Stainless Steel Valve Body for Industrial Use (1).jpg

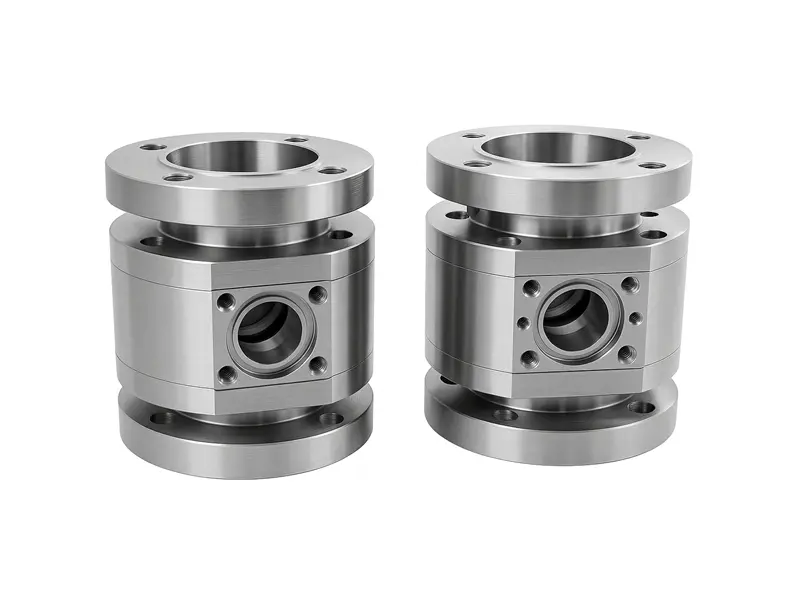

CNC Machined Stainless Steel Valve Body for Industrial Use (2).jpg

CNC Machined Stainless Steel Valve Body for Industrial Use

This valve body is machined from solid stainless steel and is suitable for valve assembly under high pressure conditions. All valve body sealing and connecting surfaces are precision machined to ensure dimensional stability and assembly reliability. Valve body applicable to a variety of common industrial valve structure.

Product Overview

The valve body is a key pressure-bearing component in the structure of industrial ball valves, gate valves, globe valves and other structures. The whole body is made of stainless steel, with good corrosion resistance and mechanical strength. All key dimensions are processed by CNC equipment to ensure consistency and interchangeability in mass production.

Material & Processing

- Material: Stainless steel (commonly used 316 or 304 or customer-specified material).- Processing: CNC turning and milling, inner cavity can be polished or honed.- Threaded hole: can be designed as internal thread or through hole according to drawings.- Surface roughness: Ra≤1.6 µm on sealing surface.- Bevelling or chamfering can be added according to requirements.Connection Options- Flange connection (standard B16.5 or customised)- Threaded connection (NPT/BSPP)- Socket weld ports are also available on request.

Applications & Features

Applications

Widely used in oil, gas, chemical, water treatment and other industries in the pressure pipeline. Suitable for manual, electric or pneumatic control valve systems. Compact structure, suitable for installations with limited space.

Key Features

- Solid forgings or round steel finishing, high structural strength

- All threads and connecting surfaces are inspected according to drawings

- Suitable for high-frequency opening and closing and high-pressure applications

- Available in one or two-piece configurations

- Available in single or double block configurations to meet NACE standards for sulphurous service.

Quality Assurance

All valves are dimensionally inspected prior to shipment. Material certificates (EN 10204 3.1) are available, as well as pressure or seal tests (for complete valve assemblies) on request.

Frequently Asked Questions(FAQs)

Q: Can you manufacture according to drawings?

A: Yes, we manufacture according to customer drawings and tolerances.

Q: What is the MOQ?

A: We support small batch trial production, and we can also arrange sample production for new drawings.

Q: Can we do anti-rust treatment before shipment?

A: Yes, we will do the cleaning, anti-rust oil treatment and packaging according to the export standard.

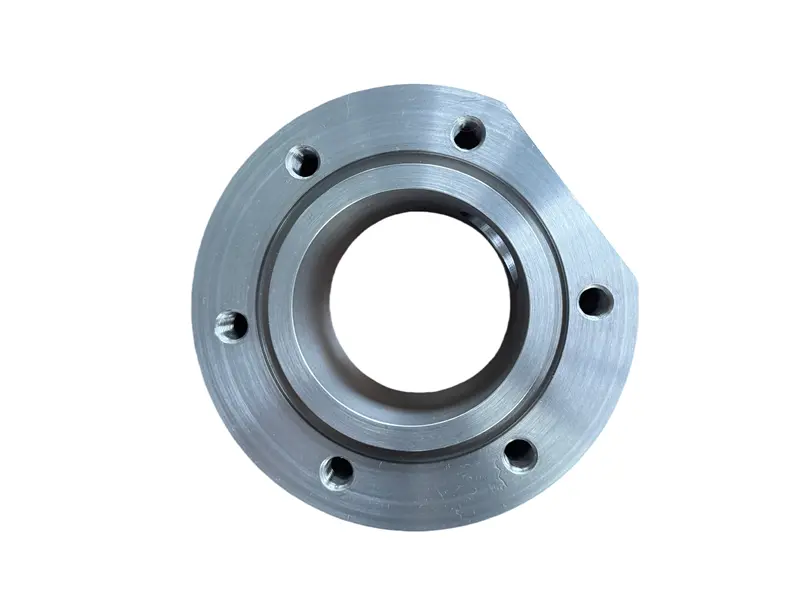

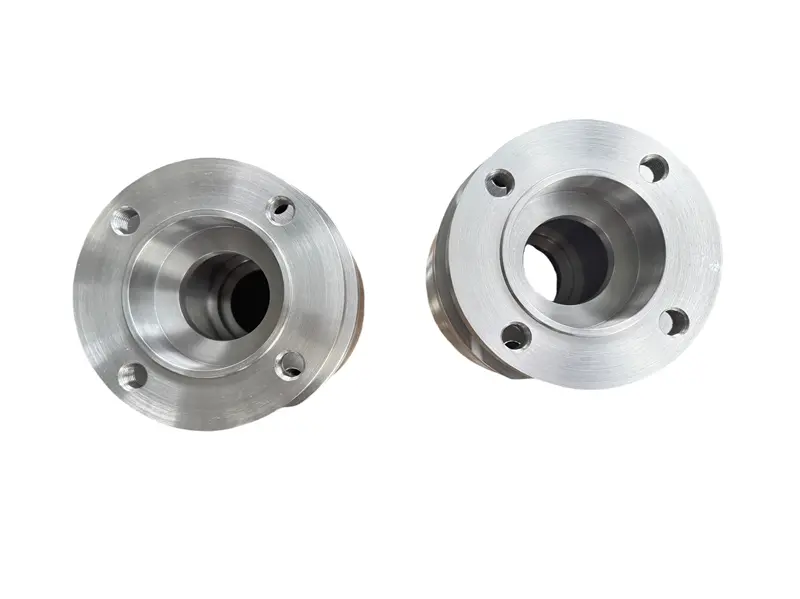

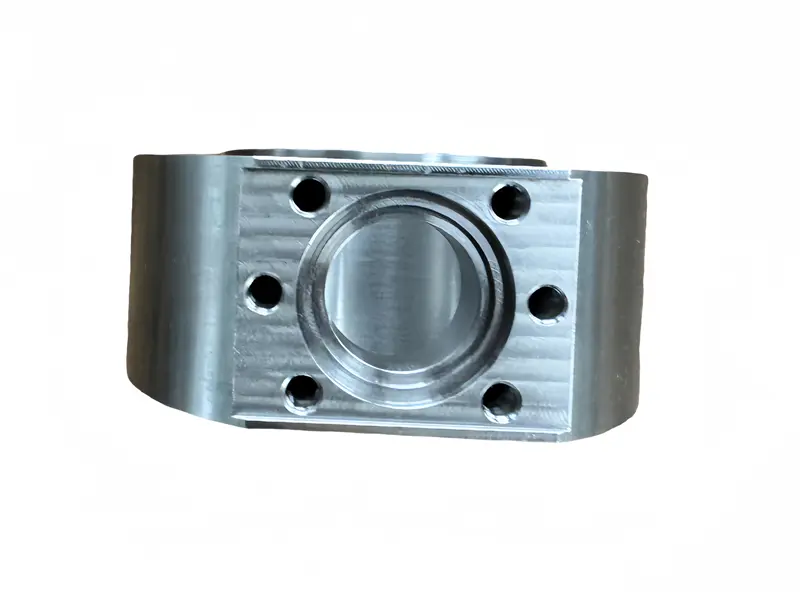

DETAIL PICTURE
