316L valve bracket

This part is usually called a 316L valve bracket on drawings and orders. In real projects, it is mainly used to hold the valve or actuator in position during installation. After mounting, it does not do much by itself, but it helps keep the assembly from shifting. Most customers take it together with the valve set, not as a separate item.

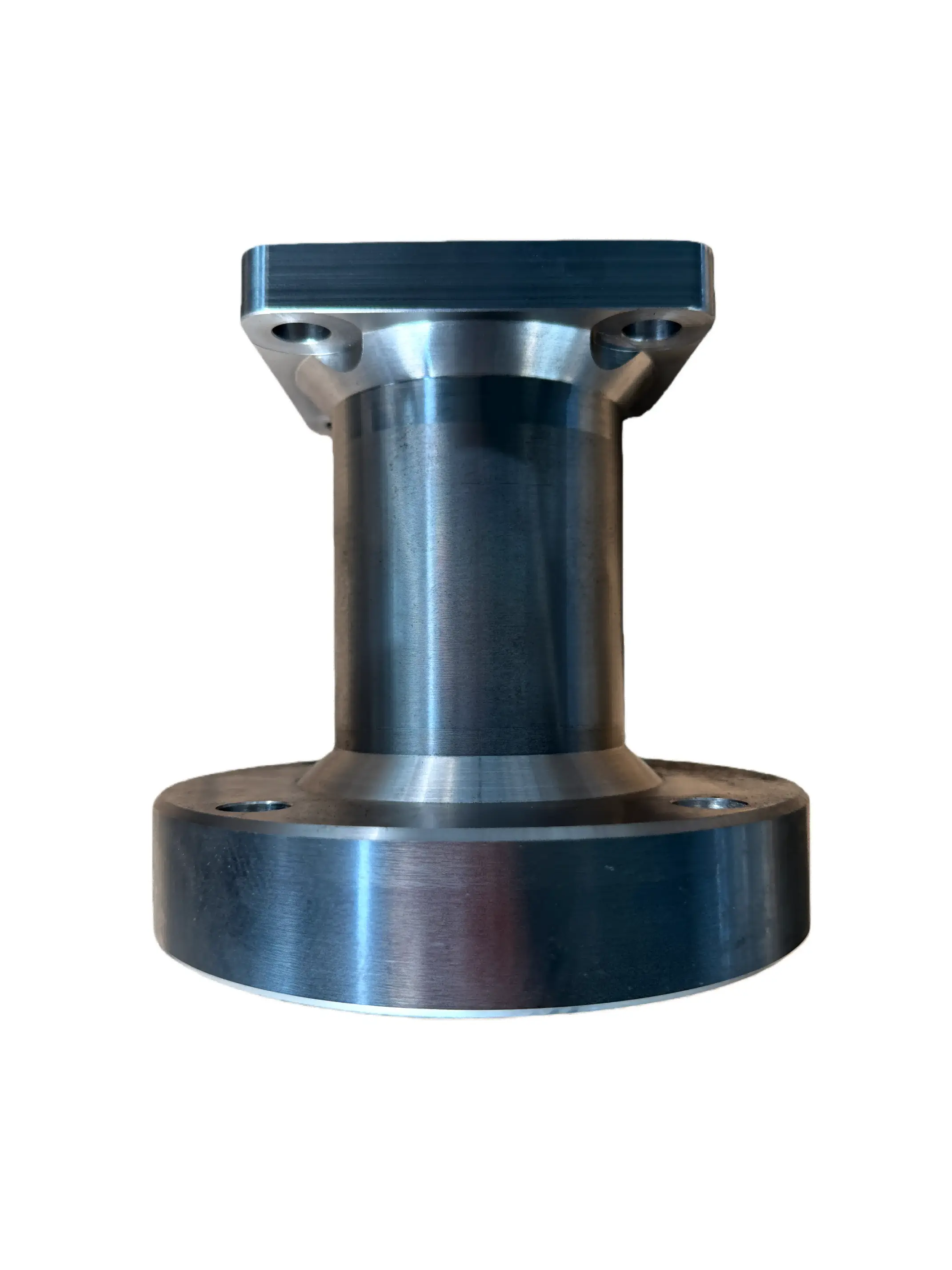

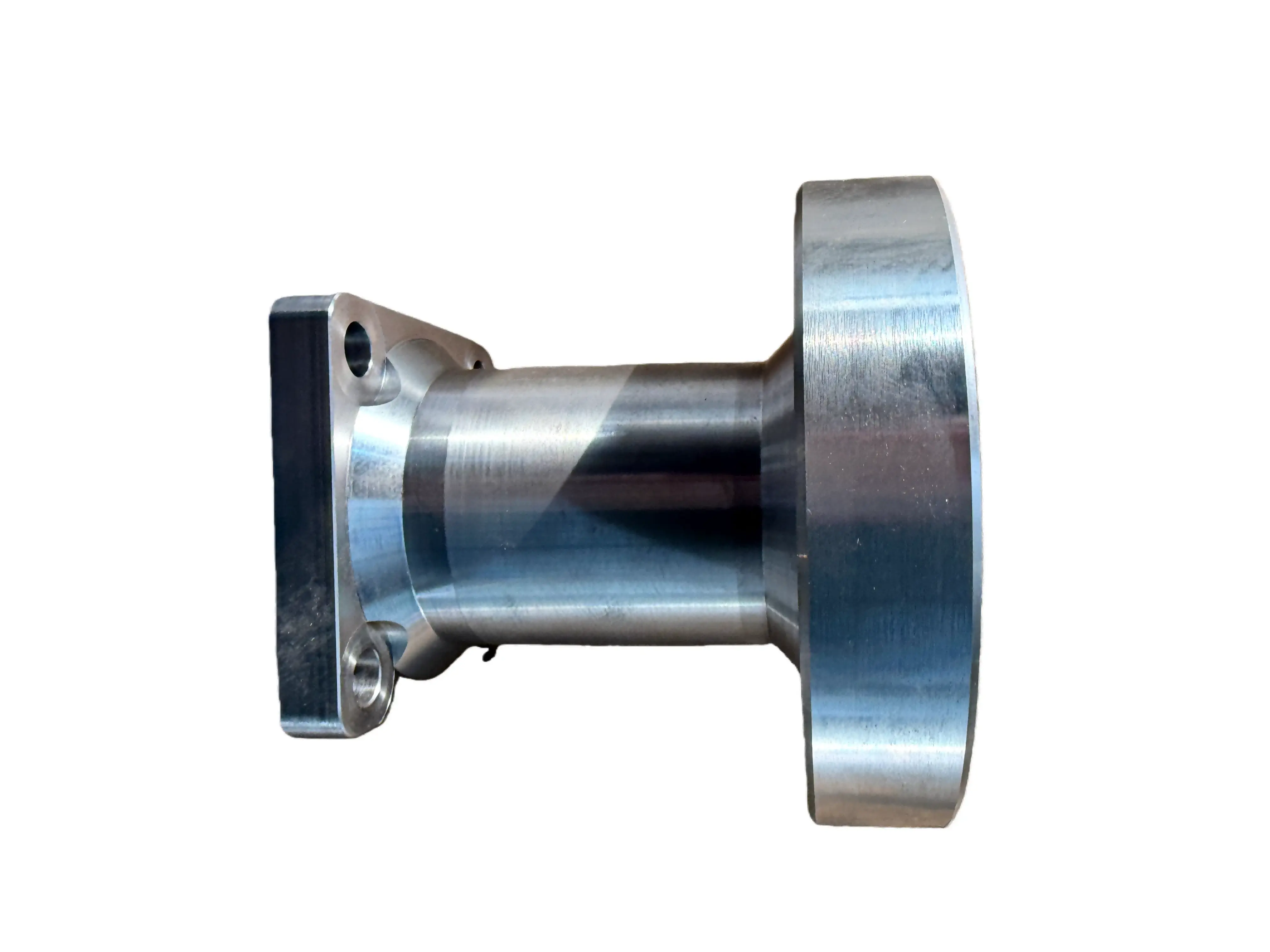

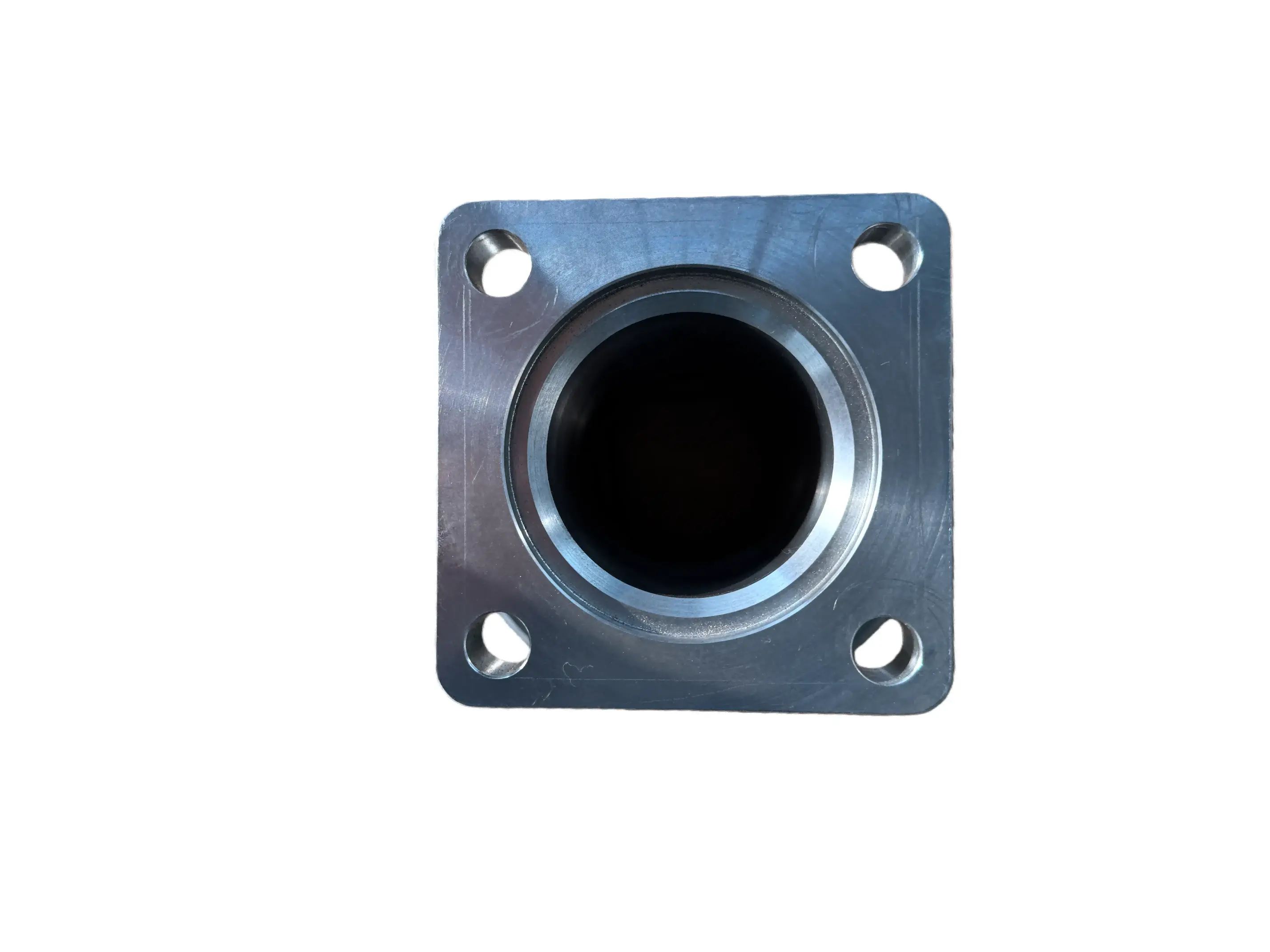

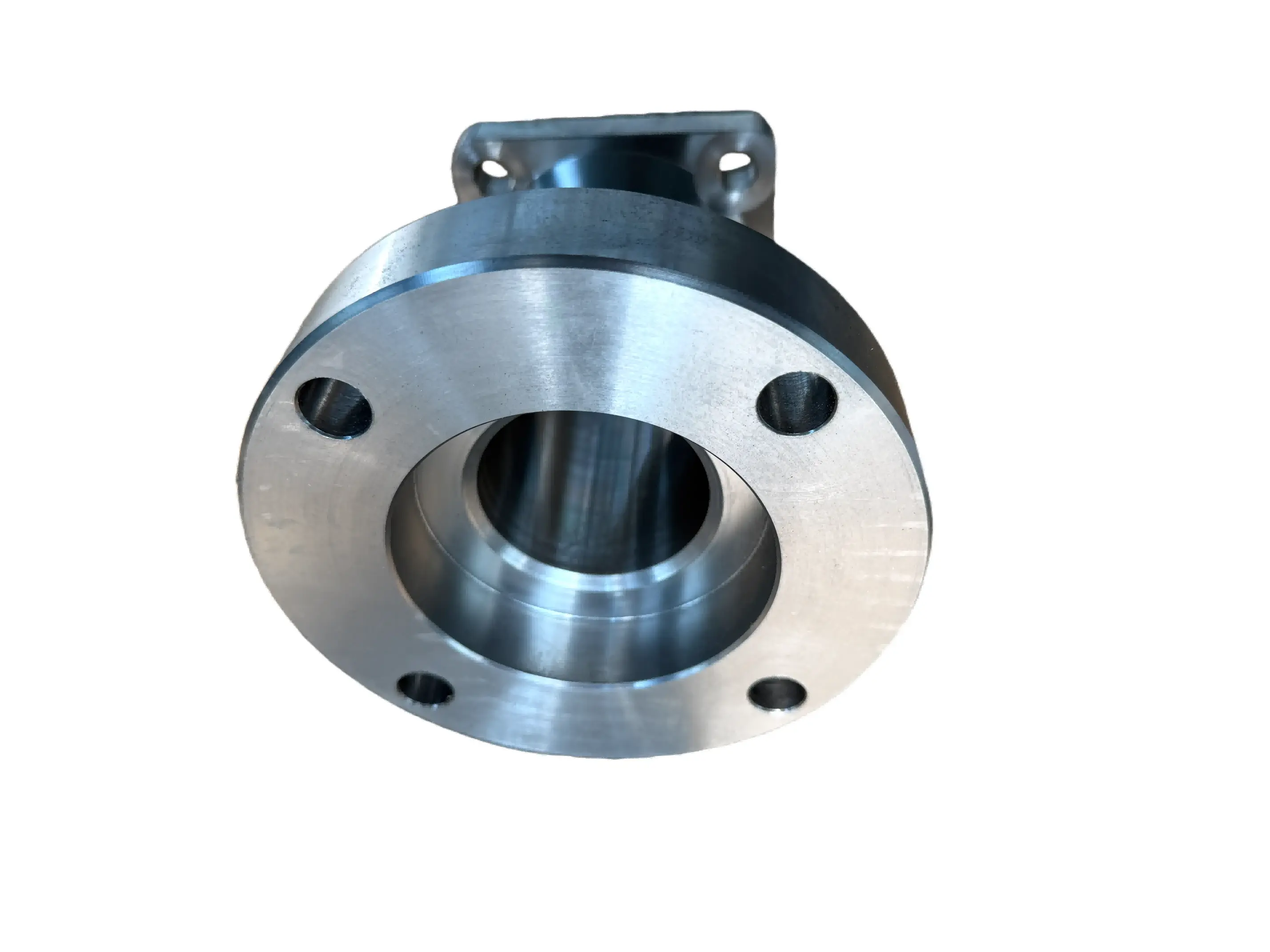

The shape is simple. A flange at the bottom and a square mounting section on top. This layout is common and easy to fix on site. Machining is done only where it matters for assembly. We pay attention to mounting faces and center position. Surface appearance is not treated as a priority as long as the part fits.

316L is chosen mostly because of the environment. Some systems are humid, some are close to the sea, some handle mixed media. In those cases, customers prefer a material that stays stable for a long time. Under normal use, this bracket does not need special care. It is checked together with the valve during routine inspection.（316L valve bracket）

Supply depends on the project. Sometimes we use a standard structure, sometimes we follow customer drawings. Hole positions, dimensions and tolerances are defined by how the part is installed. Before shipment, we only do basic dimensional checking and visual review. If a project asks for records, we prepare them accordingly.
