Valve Drive Parts

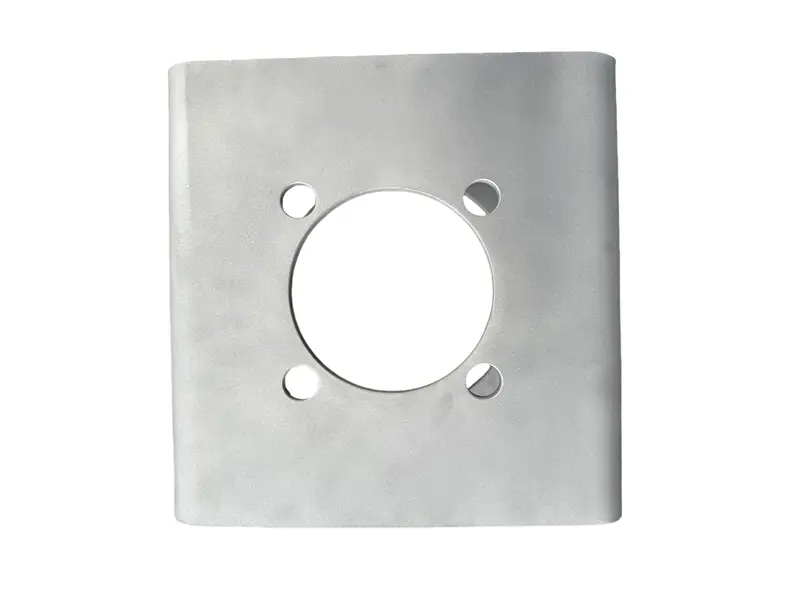

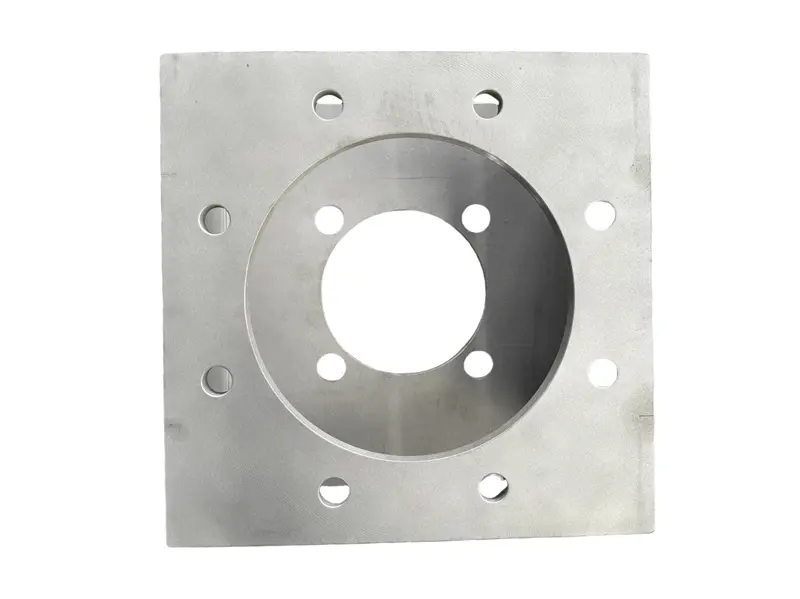

316L Stainless Steel Ball Valve Bracket (1).jpg

316L Stainless Steel Ball Valve Bracket (2).jpg

316L Stainless Steel Ball Valve Bracket (Sandblasted Surface)

This bracket is a mounting accessory for ball valves, made of 316L stainless steel plates and treated with sandblasting on the surface. The overall appearance is uniform and non-reflective, suitable for demanding working conditions. The structure is a square welded frame with flange surfaces at both ends. The flange surfaces are equipped with bolt holes and through holes for actuator installation and valve body fixation.

Product Features

- Material: 316L stainless steel, highly corrosion-resistant, suitable for seawater, chemical, and outdoor environments;

- Structural Form: Square butt-welded structure with internal stiffening plates, strong rigidity;

- Surface Treatment: Fully sandblasted surface with consistent roughness, facilitating subsequent passivation treatment;

- Processing Method: Laser cutting + CNC drilling + TIG welding;

- Hole Position Configuration: The flange holes at both ends are arranged according to the ISO 5211 bracket standard, compatible with various electric actuators or pneumatic actuators.

Scope of Application

- Bracket for ball valve installation;

- As actuator mounting bracket to fix actuator and valve;

- Widely used in water treatment, chemical, natural gas, automation equipment and other occasions;

- Can be used as stainless steel valve support in corrosive environments;

- Replaces traditional castings, used in valve platforms that require precision and cleanliness.

Note

- Customized hole positions, flange forms and dimensions can be made according to customer drawings.

- Other stainless steel materials (such as 304, 316) or carbon steel spray-coated versions can be provided.

- It is suitable for ISO 5211 actuator mounting interface matching.

- It can be used in combination with duplex steel or 316L electropolished versions.

Frequently Asked Questions (FAQ)

Q1: Can the bracket be used for ISO 5211 standard actuators?

A: Yes, the standard hole positions refer to the ISO 5211 actuator mounting standard. Custom processing is also supported for special requirements.

Q2: Can this bracket be used with electric or pneumatic actuators?

A: Yes. This structure is suitable for the installation requirements of both electric actuators and pneumatic actuators and supports multiple models.

Q3: Can the hole positions be modified according to the customer's drawings?

A: We support processing based on customer drawings, including customizing flange dimensions, the number of screw holes, and the diameter of the openings, etc.

Q4: Besides 316L, what other materials are available for selection?

A: The commonly available materials for selection include 304, 316, 2205 duplex steel, carbon steel (painted or galvanized), etc.

Q5: Can sandblasting treatment be replaced by other surface treatments?

A: If necessary, options such as electropolishing, pickling passivation, and galvanizing can be chosen.

DETAIL PICTURE

316L Stainless Steel Ball Valve Bracket (1)

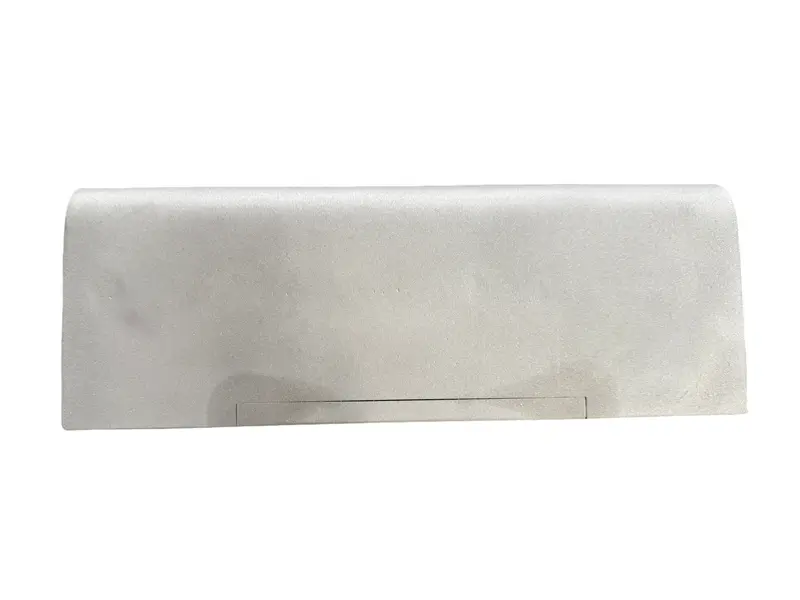

316L Stainless Steel Ball Valve Bracket (3)

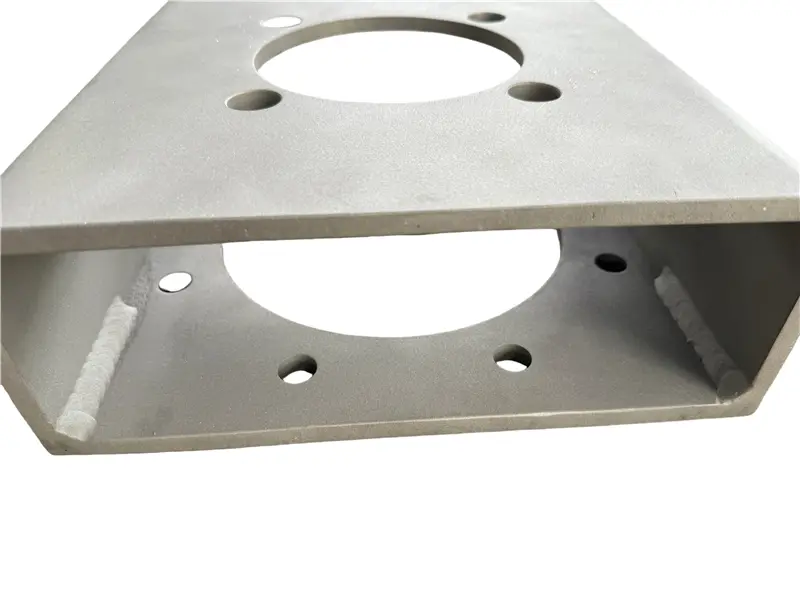

316L Stainless Steel Ball Valve Bracket (4)

316L Stainless Steel Ball Valve Bracket (Sandblasted Surface)

Product Features

Scope of Application

Note

Frequently Asked Questions (FAQ)

DETAIL PICTURE

Leave Your Message
