10-Inch Carbon Steel Valve Body (Welded + Machined Valve Housing)

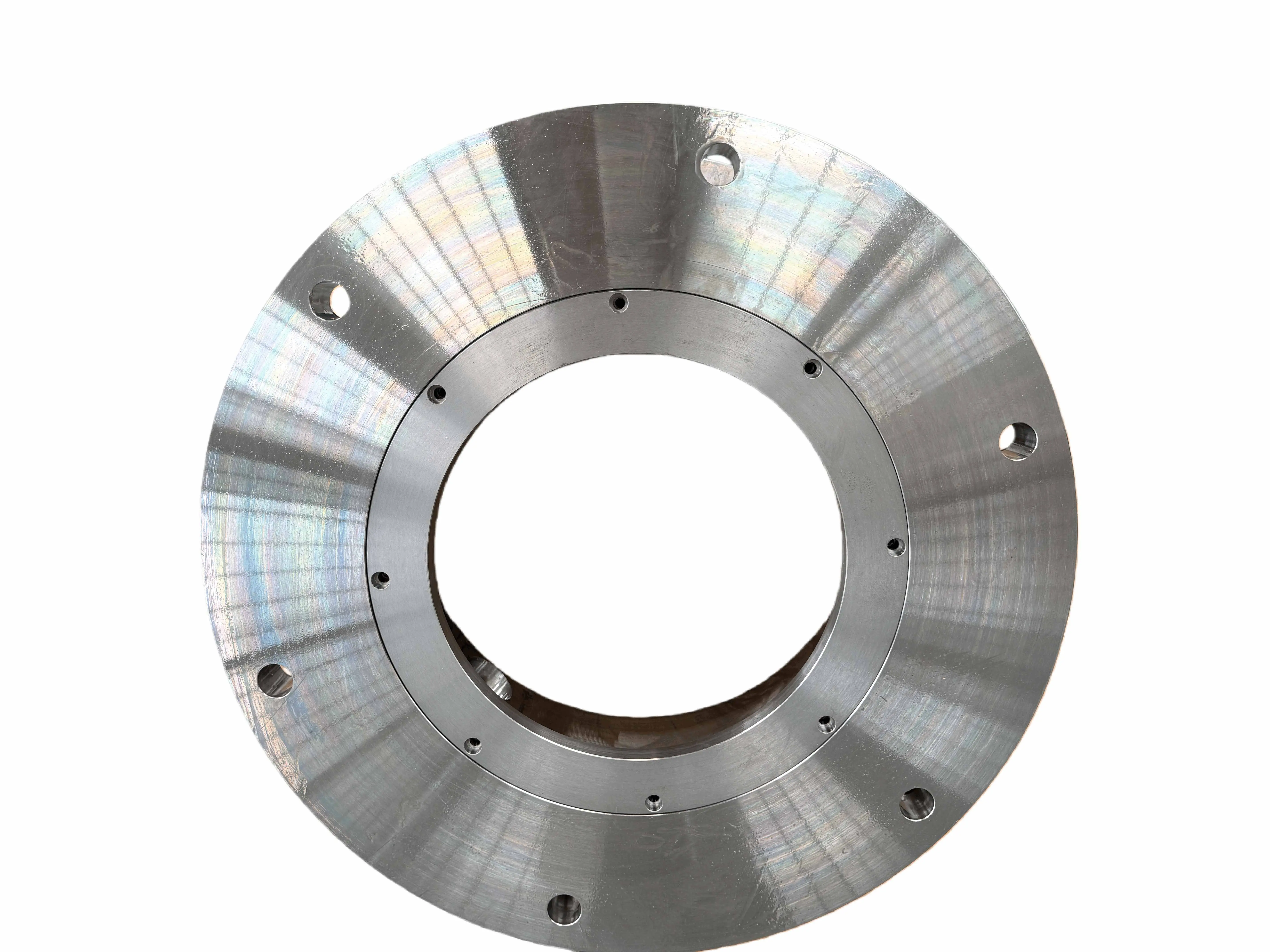

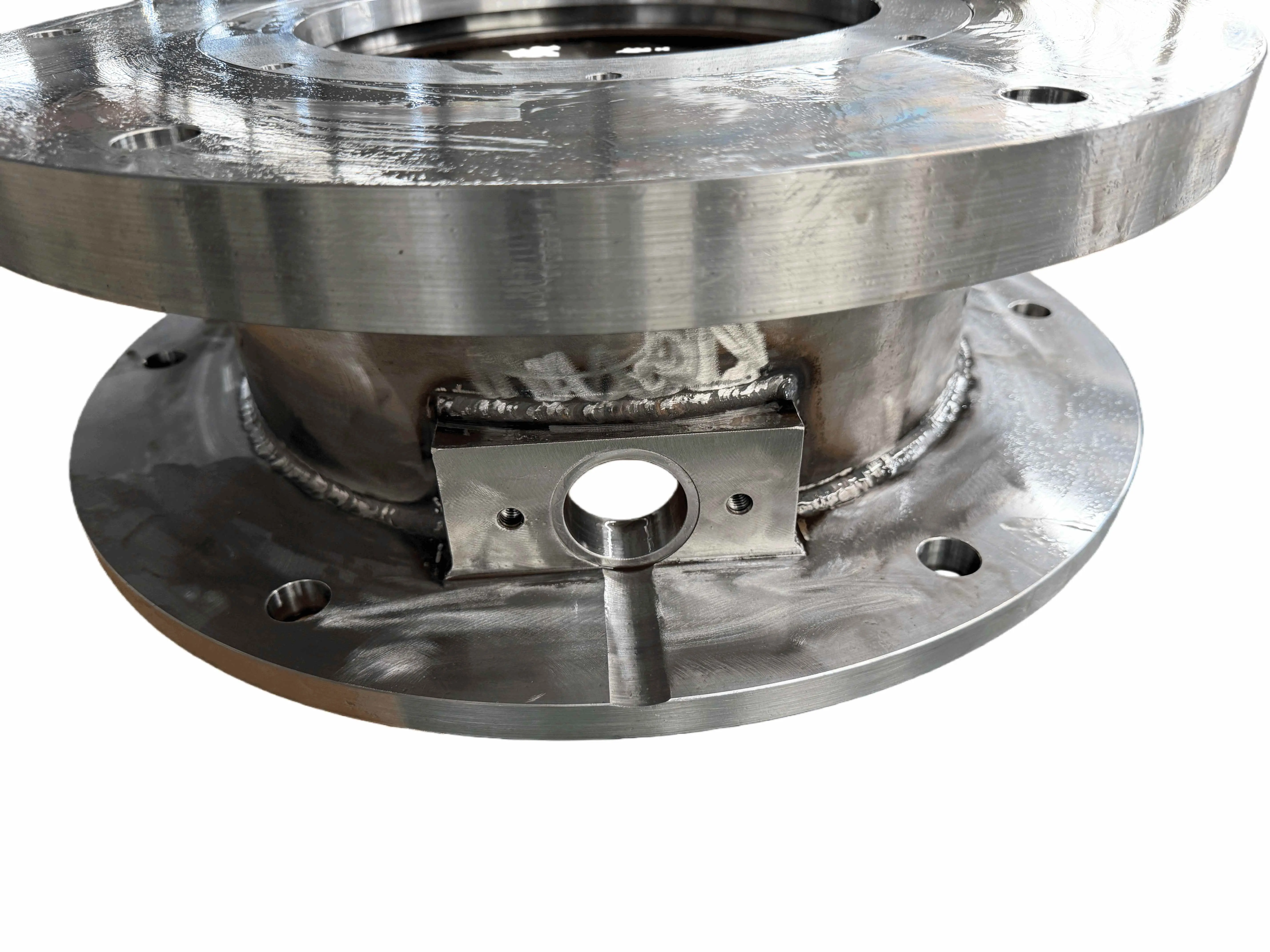

This 10-inch carbon steel valve body is built from welded steel sections and then machined as a complete valve housing. The flanges are machined after welding so the sealing faces stay flat and the bolt circle stays accurate. The side block, welded to the main valve body, is bored in the same setup to keep the hole centered and aligned. This type of valve body is commonly used in large industrial valve assemblies or custom flow equipment that requires a rigid carbon steel structure.

The product shows normal machining marks on the flanges, and the welds remain as-welded except for the machined areas. All dimensions follow the customer drawing for this custom carbon steel valve body. No coating is applied unless required for the application.

⸻

Typical Use

This welded valve body design is often used in flow control systems, pipe transitions, and custom machinery. Carbon steel is selected for strength, good weldability, and reliable performance under load. The valve housing handles conditions with vibration, repeated operation, and external force from connected piping.

⸻

Manufacturing Details
        •        Welded carbon steel construction
        •        Machined flanges with through holes for assembly
        •        Reinforced block welded to the body, then machined for a precise bore
        •        Concentricity, flatness, and bolt alignment controlled after welding
        •        Material, bore size, and bolt layout can follow customer drawings
